This solution features low-cost and low-power. By controlling the 8x8x8 LED matrix with 32 GPIOs and using the DMX512 communication interface, This solution can receive commands from a computer or DMX512 host, and bring you a new experience through continuous transformation.

The launch reference design using the M058S series chips can drive LEDs directly through pins and receive commands from a computer or DMX512 host through the DMX512 communication interface.

In single machine mode, the design uses Arm® Cortex®-M0 arithmetic capability to significantly reduce user’s development time through mathematical formula and real-time operation display scripts.

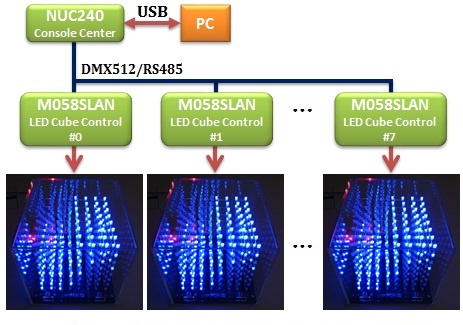

In connecting mode, the design uses the DMX512 network protocol to control the 8 LEDs CUBE through a computer simultaneously. In addition, the M058S chip also includes I²C, SPI, PWM, and ADC function.
