Out-of-band (OOB) Management Solution for Edge Devices

The Out-of-band (OOB) remote device management of Nuvoton NUC980 is a complete solution with Allxon Device Management System (DMS). When a blue screen or abnormality occurs in the remote system (In-band Device), the OOB function can reboot the remote system and confirm whether the remote device is back to normal by In-band system management. In addition, Nuvoton NUC980 provides customers with a cloud management interface (Portal) to control all edge devices easily.

Features

-	Software as a Service (SaaS) platform
-	Only 2 to 4 layers PCB layers
-	Supports multiple network protocols MQTT, COAP, HTTPD, HTTPS, etc
-	Wi-Fi/ 4G connection to the cloud
-	Linux OS

Specifications

NUC980 (32-bit Arm926EJ-S)

- LQFP package build-in 64/128 MB DDR

- Supports SPI NOR/NAND

- 10/100 Ethernet

- USB High-Speed Host

- Up to 10-set UART/ RS485

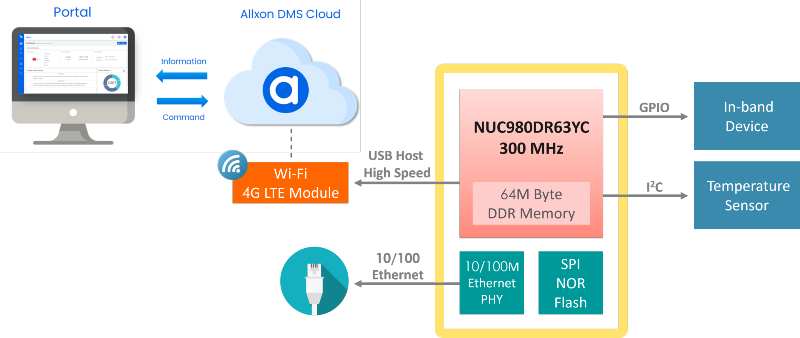

System Block Diagram
