Thermostat utilizing Touch Key

The NuMicro® ML56 series includes rich peripherals to realize thermostat function with touch key. The thermostat reference design can provide environmental temperature sensing, system control using touch keys, and temperature/time information display on LCD.

Features

- Supports 9 cm x 6 cm HTN LCD

-
Supports 13 touch keys

- Supports GUI to program touch key sensitivity levels for each channel

Specifications

ML56 (8-bit, 1T 8051)
-	Integrated with touch key and LCD controller functions
-	Touch key controller
	- IEC 61000-4-6 10 Vrms
	- High touch sensitivity and high noise immunity
-	LCD controller
	- Charge pump voltage range is from 1.8 V to 5.5V
	- Driver up to 10 cm x 10 cm panel
	- Low power consumption

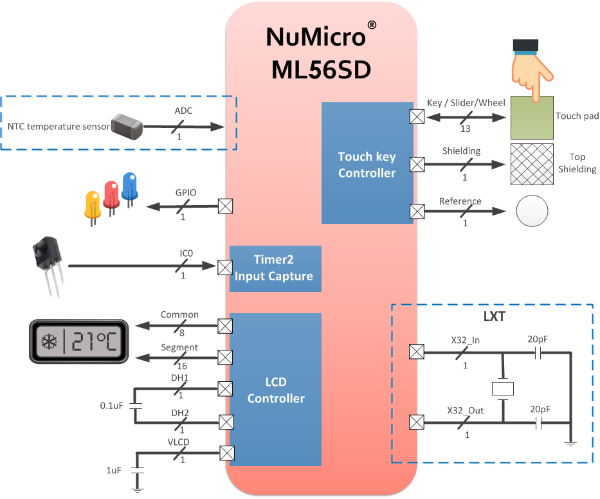

System Block Diagram
