KM1M7AF sires integrates a high-performance CPU suitable for high-speed feedback control required for digital power supply control, a high-resolution PWM circuit, and various high-precision, high-speed analog circuits on a single chip.

This MCU is ideal for digital control of various power sources such as PFC and LLC.

• Features


  -	High-speed arithmetic processing suitable for the features of SiC/ GaN
  -	High-performance and easy-to-use high-resolution PWM
  -	Built-in high-precision analog reduces external parts
  -	Noise resistant 5V single power supply operation

• Specifications


  KM1M7AF Series
  -	Arm Cortex-M7 core up to 160 MHz
  -	Up to 512 KB Program Flash, Up to 64 KB Data RAM
  -	Three 12-bit SAR ADCs with Minimum conversion time 0.5 μs
  -	Power control PWM  12 units/24 ch (High resolution [208 ps]  9 units/18 ch )
  -	Operating voltage: 5V single power supply

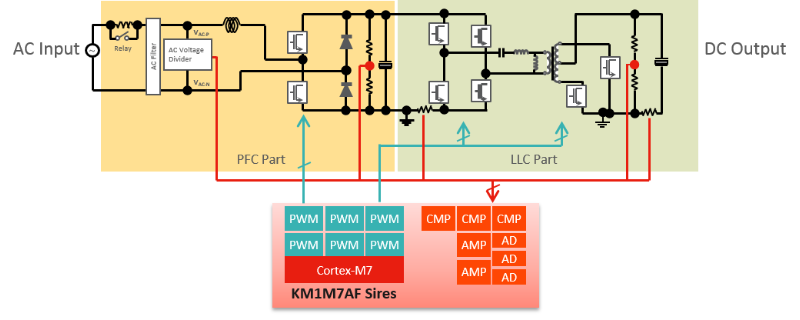

• System Block Diagram
