The VR/ AR solution is based on Nuvoton KM86473D (MIPI converter IC) and NuMicro® M482 MCU to convert HDMI2.0 or DisplayPort 1.4 input to MIPI DSI output.

With Nuvoton’s solution, customers can achieve ultra-clear display (up to 5K & 120 Hz) and 6 DoF motion tracking (by Nuvoton AHRS algorithm) for a better VR experience.

• LSI Features


  -	Hybrid support of HDMI2.0 & DP1.4 input (software configurable)
  -	4 MIPI DSI ports (16 lanes @ 2.5G)
  -	HDCP 1.4 & 2.3 support (w/ key)
  -	Super Resolution 4x zoom Up-scaler (e.g., FHD->4K)

• Specifications


  -	Mature & Market-Proven Solution
  -	USB-C support with external CC controller
  -	6 DoF Motion Tracking
  -	Schematic/ layout provided for fast hardware design and PCB making
  -	Robust and simple MCU control SW (MCU: NuMicro® M482SIDAE)
  -	Full source code provided for customization

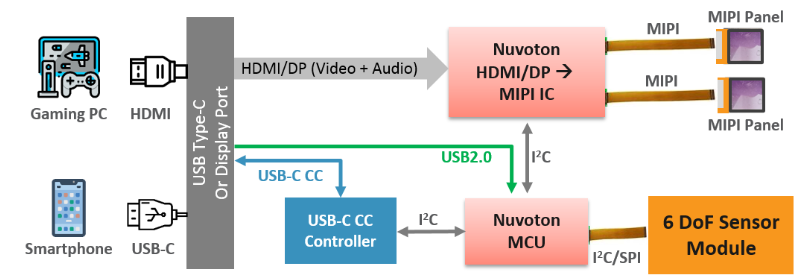

• System Block Diagram
