NuMaker-PFM-NUC472

The NuMaker PFM-NUC472 platform is designed to tackle even more complex computing requirements and cloud network protocol. Further to features of NuMaker PFM-M453, it is added with 1MB SRAM and embedded Ethernet networking port for complex cloud network protocol support. The user-friendly input interface provided by Nuvoton enables fast verification, learning, and application development by developers for easy IoT application creation.

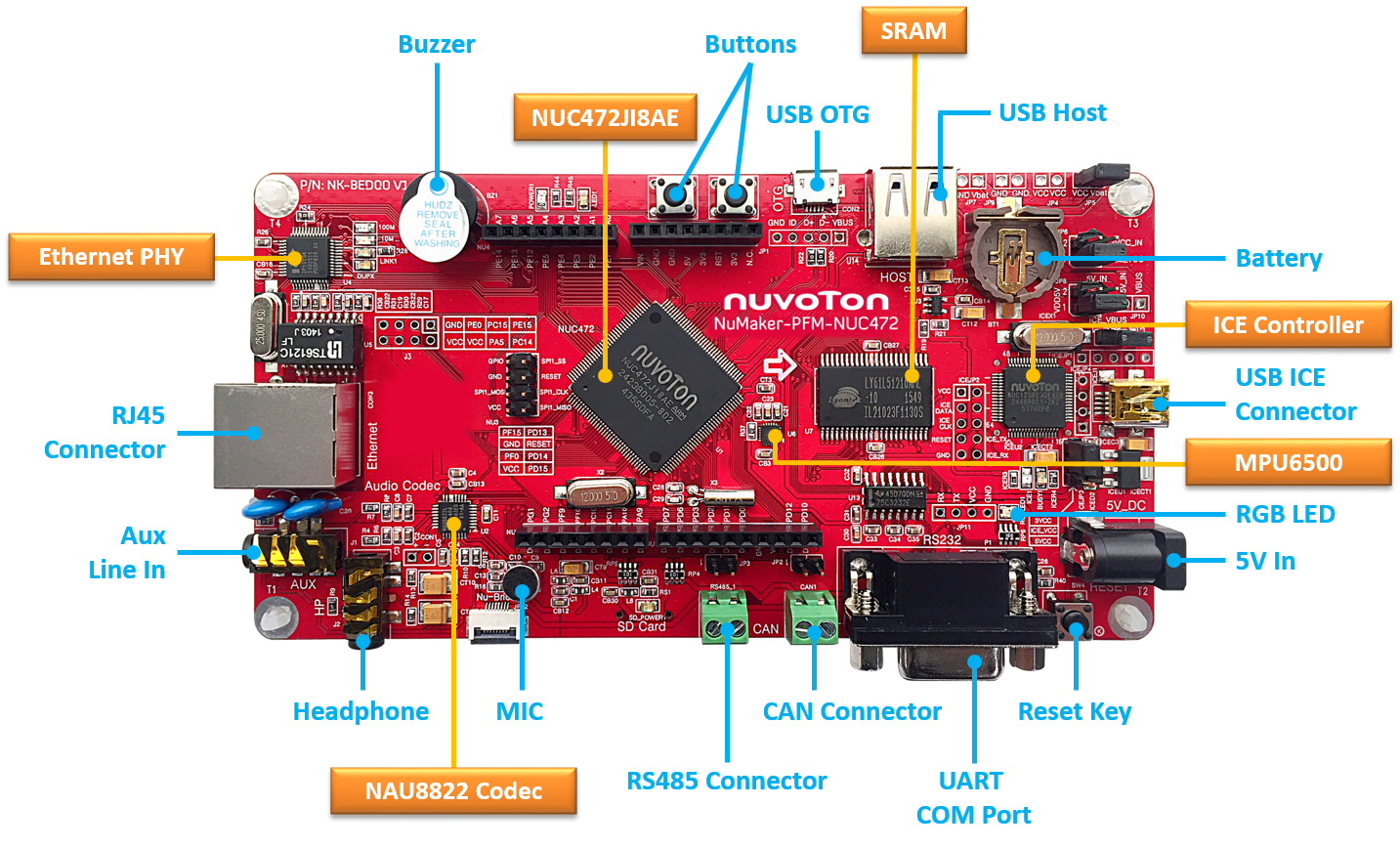

NuMaker-PFM-NUC472_Functions

Platform	NuMaker-PFM-NUC472
Features	32-bit Cortex®-M4 NUC472JI8AE MCU Core clock 84 MHz 512 KB embedded Flash and 64 KB SRAM 10/100Mbps Ethernet; supports RMII and MII AES, TDES and SHA crypto engine
On Board Devices	Audio Codec (NAU8822LYG), supports MIC, line-in and headset External 1MB SRAM On board 6-axis IMU (MPU6500) Buzzer Supports RTC battery MIC
Interfaces	Arduino UNO Ethernet USB OTG and Host TF RS232 RS485 CAN Audio
