M032SG6AE
Nuvoton NuMicro M032SG6AE is low-voltage operation MCU based on Arm® Cortex®-M0 core with 32-bit hardware multiplier/divider. Operating frequency up to 72 MHz with 1.8V ~ 3.6V operating voltage, equipped 256 KB Flash and 32 KB SRAM .
With its special designed performance such as 2 MSPS ADC , 144 MHz PWM , 24 MHz SPI , 7.2 MHz UART . It can be applied at industrial control and consumer applications, provide a fast and precise data conversion of the voltage, current and sensor data, and fast response control for the external device, such as the current/voltage feedback from motor control or sensing devices.
M032SG6AE also provides plenty of peripherals included up to 1 set USB 2.0 full speed device ( crystal-less design ) , 2 set Universal Serial Control Interface ( USCI ) , 6 set UART , 1 set QSPI , 1 set SPI /I²S, 2 set I²C , 16-ch 12-bit ADC , 24-ch 16-bit PWM etc. for various application demand. And it can operate over a wide temperature range as - 40 ℃ ~ + 105 ℃ . Pin to Pin is compatible in same package for full series.
Target Application:
- Laser Distance Meter
- Air Detector/Cleaner
- Mobile LCD Panel Controller
- Micro Printer
- WPC Wireless Charger

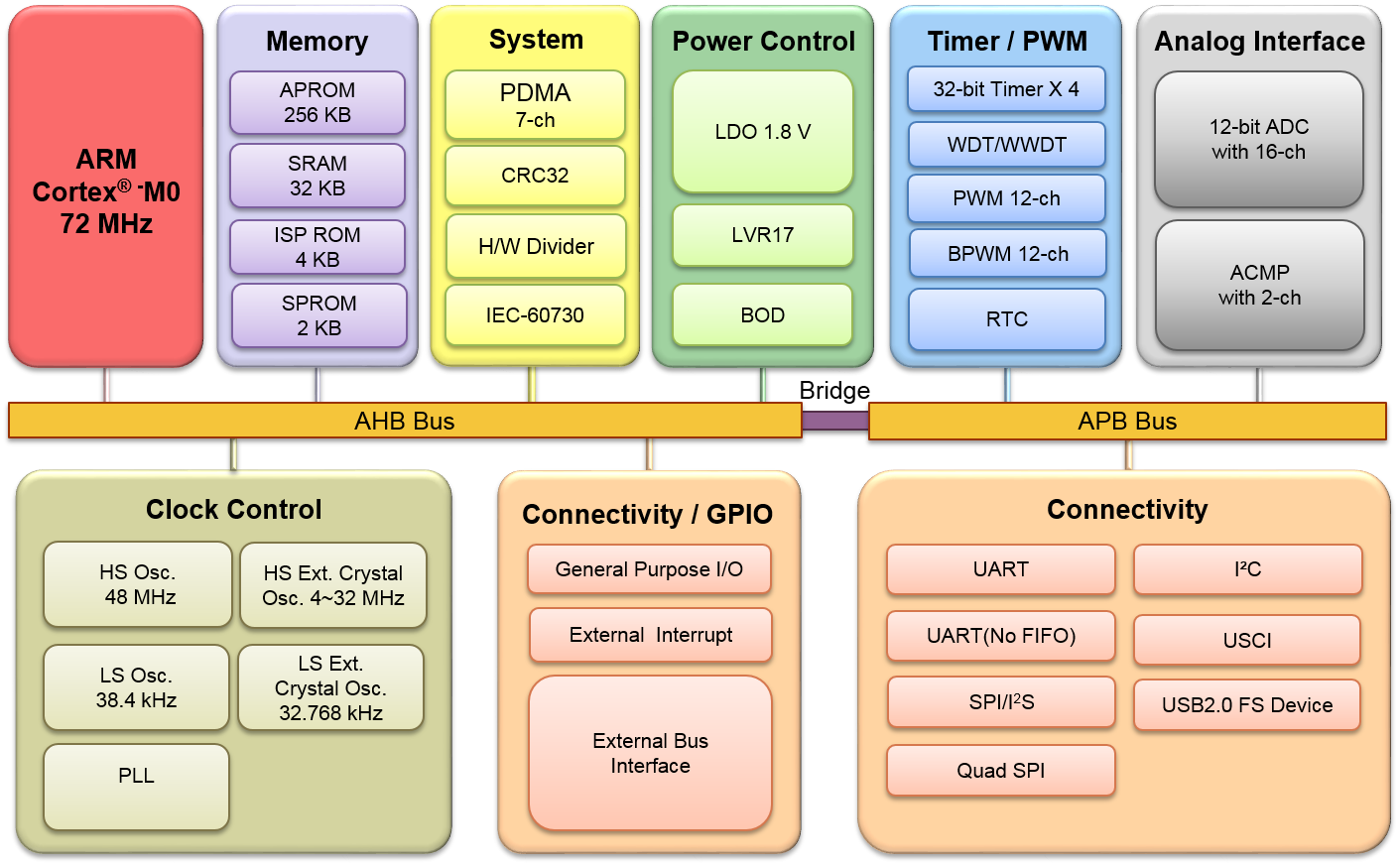

Key Features:
| • | Operating Characteristics | |
| - | Voltage range: 1.8 V to 3.6 V | |
| - | Temperature range: - 40 ℃ to +105 ℃ | |
| - | EFT 4.4 kV | |
| - | ESD HBM 5 kV | |
| • | Core | |
| - | Arm® Cortex®-M0 processor running up to 72 MHz | |
| - | 32-bit H/W multiplier/divider | |
| • | Memories | |
| - | 256 KB Flash | |
| - | 32 KB SRAM | |
| - | 4 KB Flash for user program loader ( LDROM ) | |
| - | ISP / ICP / IAP programming | |
| - | 2048 bytes SPROM ( Security Protection ROM ) | |
| • | Clocks | |
| - | 4 to 32 MHz HXT crystal oscillator or external input clock | |
| - | 32.768 kHz LXT crystal oscillator or external input clock for low-power system operation | |
| - | Internal 48 MHz HIRC oscillator with variation ± 2 % within all temperature range | |
| - | Internal 38.4 kHz LIRC for Low-power operating mode | |
| - | One PLL up to 144 MHz for high speed module operation | |
| • | Timers | |
| - | Up to 4 32-bit timers | |
| - | One 24-bit SysTick timer | |
| • | PWM | |
| - | 24 channels 144 MHz 16-bit PWM | |
| • | Analog | |
| - | 16 channels 12-bit 2 MSPS ADC | |
| - | Two rail-to-rail comparators ( ACMP ) | |
| • | PDMA | |
| - | 7 channels PDMA | |
| • | CRC | |
| - | CRC-CCITT, CRC-8, CRC-16 and CRC-32 polynomials | |
| • | Communication interfaces | |
| - | 2-set of USCI interfaces that supports UART , SPI and I²C mode | |
| - | 6-set of 7.2 MHz UART interfaces | |
| - | 1-set of QSPI interface | |
| - | 1-set of 24 MHz SPI /I²S interface | |
| - | 2-set of 1 MHz I²C interface | |
| - | External Bus Interface ( EBI ) , supports 8-/16-bit data with maximum external address space of 1 MBytes | |
| - | 51 GPIO ( except analog pins, Support 5V tolerant I/O ) | |
| • | 96-bit Unique ID ( UID ) | |
| • | 128-bit Unique Customer ID ( UCID ) | |
| • | Package | |
| - | LQFP64 7 x 7 mm | |
