M051 Base Series

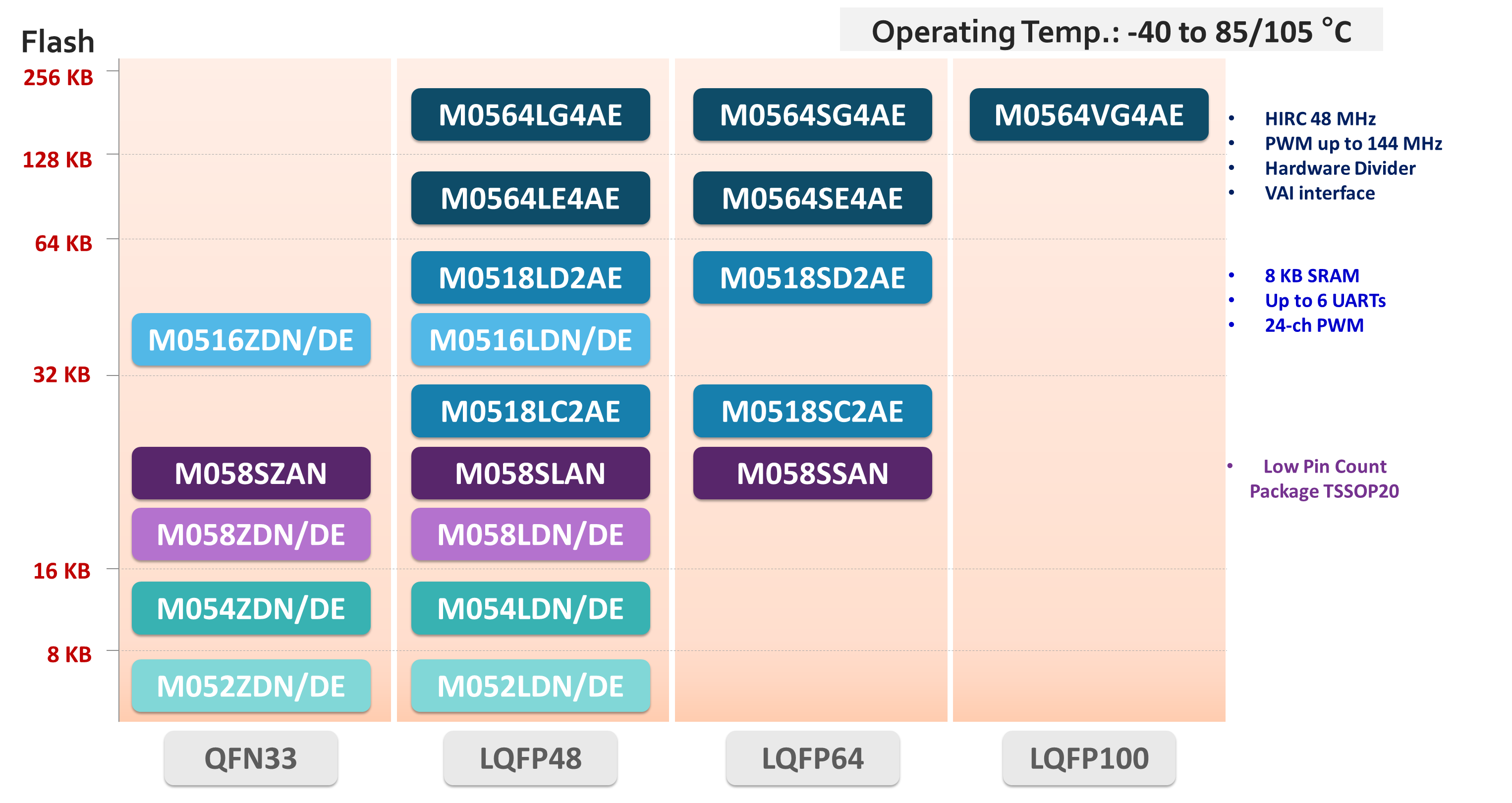

The M051 series operates at 2. 5V ~ 5. 5V and - 40 ℃ ~ 105 ℃ , and provides 22.1184 MHz high precision internal oscillator ( full range ± 3 % ) , rich peripherals and high immunity ( 8kV ESD, 4kV EFT ) . Package types include QFN33 and LQFP48、LQFP64 and LQFP100.
Target Application:
Industrial Control, Security/Alarm, Temperature Sensor, Motor, Smart Metering Applications, etc.
Key Features:
| • | Core | ||
| - | Cortex™-M0 processor | ||
| - | Max frequency of 50 or 72 MHz ( *1 ) | ||
| - | Operating voltage: 2. 5V to 5. 5V | ||
| - | Temperature range: - 40 ℃ ~ 105 ℃ | ||
| • | Memory | ||
| - | Up to 256 KB of flash memory ( *1 ) | ||
| - | Up to 20 of SRAM Y1 ( *1 ) | ||
| - | 4 KB of Data Flash | ||
| - | ISP ( In-System Programming ) | ||
| - | ICP ( In-Circuit Programming ) | ||
| - | IAP ( In-Application Programming ) | ||
| • | ADC | ||
| - | 12-bit SAR ADC of up to 20 channels ( *1 ) | ||
| - | A/D conversion started by PWM | ||
| - | ± 1 ℃ accurate Temperature sensor | ||
| • | PWM | ||
| - | Up to 24 channels of 16-bit PWM or complementary paired PWM outputs ( *2 ) | ||
| - | Period/duty trigger ADC function | ||
| • | Connectivity | ||
| - | Up to two SPI s ( up to 36 MHz ) | ||
| - | Up to two I²C s ( up to 400 kHz ) | ||
| - | Up to eight UART s ( *1 ) | ||
| - | 16/8 bits EBI interface | ||
| • | Clock Control | ||
| - | 4 to 24 MHz external crystal oscillator | ||
| - | 22.1184 MHz internal RC oscillator ( ± 1 % accuracy at 25 ℃ , 5V ) | ||
Note:
*1: Only for M0564 Series
*2: Only for M0518 Series
