M0518 Series
M0518 series is a 32-bit microcontroller with embedded ARM® Cortex®-M0 core for industrial control and applications which need rich communication interfaces. M0518 series MCU can run up to 50 MHz , has 64-byte flash, 4K-byte data flash, 4K-byte flash for the ISP , and 8K-byte SRAM . Many system level peripheral functions, such as PWM up to 24 channels, I/O port, Timer, 6 sets UART , SPI , PWM , ADC , Watchdog Timer, and Brown-out Detector.
Target Application:
LED Control, Industrial Control, Motor Control, etc.
Key Features:
| • | Core | ||
| - | Cortex®-M0 processor | ||
| - | Max frequency of 50 MHz | ||
| - | Operating voltage: 2.5V to 5.5V | ||
| - | Temperature range: - 40 ℃ ~ 105 ℃ | ||
| • | Memory | ||

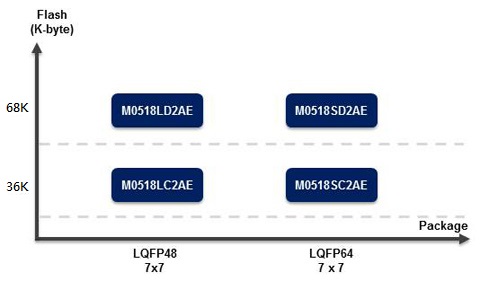

| - | 36/68 KB Flash for program memory | ||
| - | Provides 8 KB SRAM | ||
| - | 4 KB Data Flash | ||
| - | Supports ISP ( In-System Programming ) | ||
| - | Supports ICP ( In-Circuit Programming ) | ||
| • | ADC | ||
| - | Up to 8 channels | ||
| - | 12-bit resolution | ||
| - | Up to 1 MSPS | ||
| • | PWM | ||
| - | Up to 24 channel PWM outputs or four complementary paired PWM outputs | ||
| - | Support Capture interrupt | ||
| • | Connectivity | ||
| - | Up to one SPI ( up to 36 MHz ) | ||
| - | Up to two I²C ( up to 400 kHz ) | ||
| - | Up to six UART ( up to 1 Mbps ) | ||
| • | Clock Control | ||
| - | 4 to 24 MHz external crystal oscillator | ||
| - | Internal 22.1184 MHz ( 1 % accuracy at 25 ℃ ,5V ) | ||
