NUC029FAE

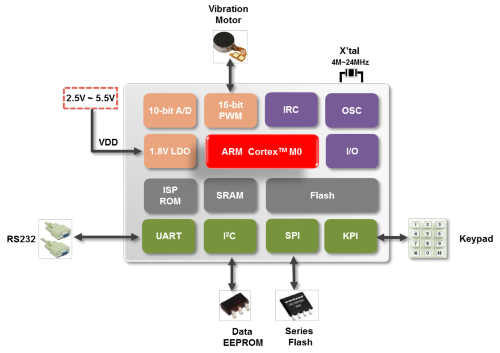

The NuMicro® NUC029FAE is a 32-bit microcontroller with embedded Arm® Cortex®-M0 core for industrial control and applications which need rich communication interfaces. NUC029FAE can run up to 24 MHz , operate with 2.5V ~ 5.5V supply voltage, - 40°C ~ +105°C temperature range, has 16 KB flash, 2 KB ISP ROM and 2 KB SRAM . Many system level peripheral functions, such as up to 3 channels PWM , up to 4 channels 10-bit ADC , I/O port, Timer, UART , SPI , Watchdog Timer, and Brown-out Detector.
Target Application:
LED Control, Industrial Control, Motor Control, etc.
Key Features:
| • | Operating Characteristics | |
| - | Voltage range: 2.5 V ~ 5.5 V | |
| - | Temperature range: - 40°C ~ +105°C | |
| • | Core | |
| - | Arm® Cortex®-M0 processor | |
| - | Max frequency of 24 MHz | |
| • | Memories | |
| - | 16 KB Flash for program memory | |
| - | Provide 2 KB SRAM | |
| - | 2 KB ISP ROM | |
| - | Support ISP ( In-System Programming ) | |
| - | Support ICP ( In-Circuit Programming ) | |
| - | Support IAP ( In-Application-Program ) | |
| • | Clocks | |
| - | 4 ~ 24 MHz external crystal oscillator | |
| - | Internal 22.1184 MHz oscillator, dynamically calibrating the HIRC OSC to 22.1184 MHz ± 3 % from - 40 ℃ ~ +105 ℃ by external 32.768 kHz crystal oscillator ( LXT ) | |
| - | 10 kHz low-power oscillator for Watchdog Timer and wake-up in Sleep | |
| - | 32.768 kHz external crystal input ( LXT ) for Power-down wake-up and system operation clock | |
| • | PWM | |
| - | Up to 3 channel 16-bit PWM outputs | |
| - | Support Capture interrupt | |
| • | ADC | |
| - | Up to 4 channels | |
| - | 10-bit resolution | |
| - | Up to 300 kSPS | |
| • | Connectivity | |
| - | Up to 1 SPI | |
| - | Up to 1 I²C | |
| - | Up to 1 UART | |
| • | Package | |
| - | TSSOP20 ( 4.4x6.5mm ) | |
