NUC120/122/123/220 USB Series

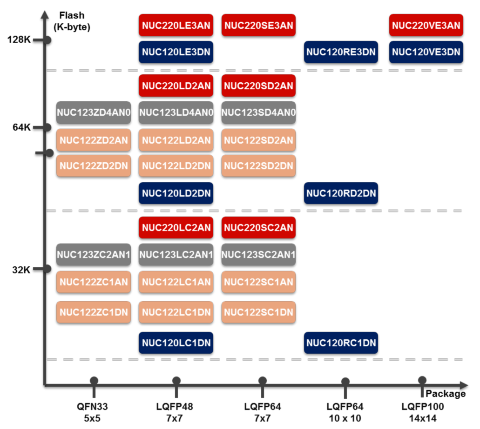

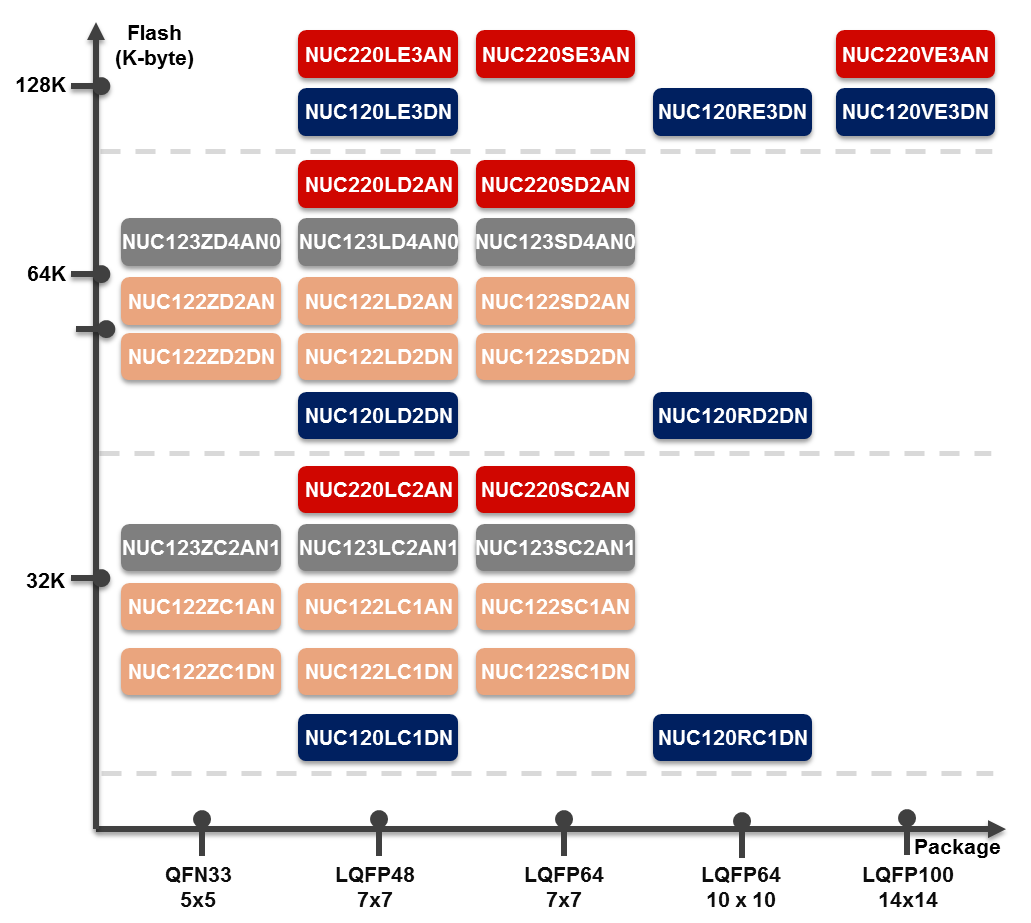

The NUC120/123/220 series operates at 2.5V ~ 5.5V and - 40 ℃ ~ 105 ℃ , and provides 22.1184 MHz high precision internal oscillator ( ± 1 % accuracy at 25 ℃ , 5V; full range ± 3 % ) , provides USB 2.0 full speed device, rich peripherals ( ex. RTC, ISO-7816-3 , CRC , I²S ) , rich connectivity interfaces and high immunity ( 8kV ESD, 4kV EFT ) . Package types include QFN33, LQFP48, LQFP64 and LQFP100.
NUC122 Series is Not Recommended For New Designs ( NRND )
Recommended Part Number:
| - | NUC123 Series |
Target Application:
Consumer, Security/ Alarm, Temperature Sensor, Communication System, etc.
Key Features:
| • | Core | ||
| - | Cortex™-M0 processor | ||
| - | Max frequency of 72 MHz | ||
| - | Operating voltage: 2.5V to 5.5V | ||
| - | Temperature range: -40 ℃ ~ 105 ℃ | ||
| • | Memory | ||
| - | 128 KB of flash memory | ||
| - | 16 KB of SRAM | ||
| - | 4 KB of Data Flash | ||
| - | ISP ( In-System Programming ) | ||
| - | ICP ( In-Circuit Programming ) | ||
| - | IAP ( In-Application Programming ) | ||
| • | ADC | ||
| - | Up to 8 channels | ||
| - | 12-bit resolution | ||
| - | Up to 760 kSPS | ||
| - | ± 1 ℃ accurate Temperature sensor | ||
| • | PWM | ||
| - | Up to eight-channel PWM or four complementary paired PWM outputs | ||
| - | Period/duty trigger ADC function | ||
| • | Connectivity | ||
| - | One USB 2.0 full speed device | ||
| - | Up to four SPIs ( up to 36 MHz ) | ||
| - | Up to two I²Cs ( up to 400 kHz ) | ||
| - | Up to six UARTs ( up to 1 Mbps ) | ||
| - | Up to three ISO-7816-3 interfaces for security application | ||
| - | 16/8 bits EBI interface | ||
| • | Clock Control | ||
| - | 4 to 24 MHz external crystal oscillator | ||
| - | 22.1184 MHz internal RC oscillator ( ± 1 % accuracy at 25 ℃ , 5V ) | ||
