NUC130/230 CAN Series

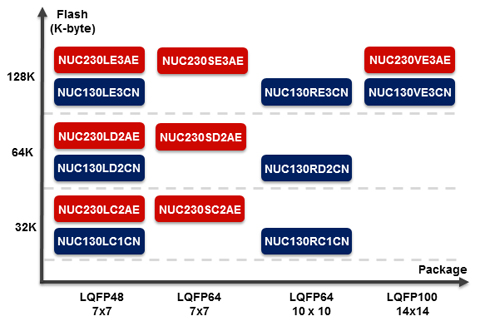

The NUC130 / 230 series operates at 2.5V ~ 5.5V and - 40 ℃ ~ 85 ℃ ,and provides 22.1184 MHz high precision internal oscillator ( 1 % accuracy at 25 ℃ ,5V ) , provides Bosch CAN 2.0A/B, Timer, RTC, PDMA, UART , SPI , I²C , I²S, PWM , 12-bit ADC , comparators, and high immunity ( 8 kV ESD/4 kV EFT ) . Package types include LQFP48, LQFP64 and LQFP100.
Target Application:
Automotive, Security/ Alarm, Temperature Sensor, Communication System, etc.
Key Features:
| • | Core | ||
| - | Cortex™-M0 processor | ||
| - | Max frequency of 72 MHz | ||
| - | Operating voltage: 2.5V to 5.5V | ||
| - | Temperature range: - 40 ℃ ~ 105 ℃ | ||
| • | Memory | ||
| - | 128 KB flash for program memory | ||
| - | Provide 16 KB SRAM | ||
| - | 4 KB Data Flash configurable | ||
| - | Support ISP ( In-System Programming ) | ||
| - | Support ICP ( In-Circuit Programming ) | ||
| - | Support IAP ( In-Application Programming ) | ||
| • | ADC | ||
| - | Up to 8 channels | ||
| - | 12-bit resolution | ||
| - | Up to 800 kSPS | ||
| - | A/D conversion started by PWM | ||
| - | ± 1 ℃ accurate Temperature sensor | ||
| • | PWM | ||
| - | Up to eight-channel PWM or three complementary paired PWM outputs | ||
| - | Period/duty trigger ADC function | ||
| • | Connectivity | ||
| - | Up to four SPI s ( up to 36 MHz ) | ||
| - | Up to two I²C s ( up to 400 kHz ) | ||
| - | Up to six UART s ( up to 1 Mbps ) | ||
| - | Up to three ISO-7816-3 interfaces for security application | ||
| - | Up to two Bosch CAN 2.0A/B | ||
| - | 16/8 bits EBI interface | ||
| • | Clock Control | ||
| - | 4 to 24 MHz external crystal oscillator | ||
| - | 22.1184 MHz internal RC oscillator ( ± 1 % accuracy at 25 ℃ , 5V ) | ||
