NUC980 Industrial control IoT series

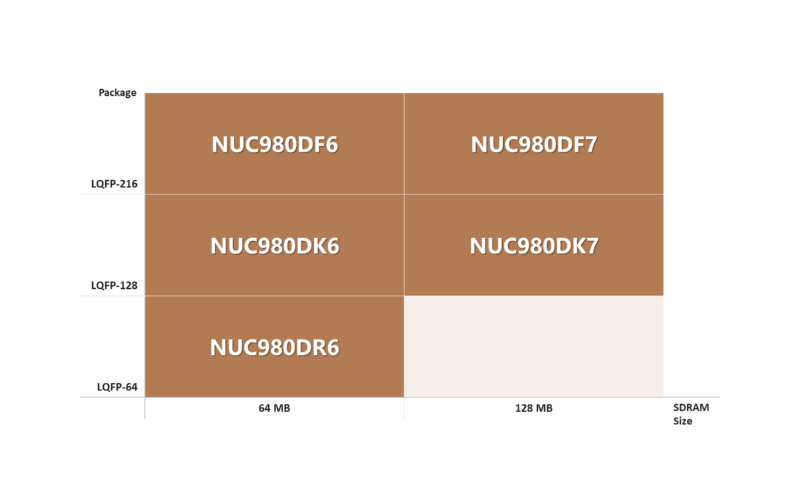

The NUC980 series with the ARM926EJ-S core can operate at up to 300 MHz . It offers 64-pin, 128-pin and 216-pin LQFP packages stacked with 64 MB and 128 MB DDR-II Memory to reduce PCB size and EMI issues. Rich peripherals include 10 sets of UART , dual Ethernet, 4 sets CAN 2.0B, dual SDIO / eMMC interface, NAND Flash interface, QSPI NAND, 8 Ports USB Host, ISO-7816 interface and High-Speed USB 2.0 host / device controller to allow more flexibility in designs. The NUC980 also integrates the crypto engine which provides hardware acceleration for AES, SHA, ECC, RSA function.
It supports industrial temperature from - 40 ℃ to 85 ℃ and targets Industrial Control, Industrial IoT Gateway, Network Printer, Meter Concentrator and Smart Home Gateway applications.
| • | Stack SDRAM @LQFP package | |
| - | Up to 128MB DDR Memory | |
| - | LQFP64/LQFP128/LQFP216 | |
| • | Crypto engine | |
| - | AES | |
| - | RSA | |
| • | Peripheral | |
| - | Up to 2 sets USB2.0 HS Host/Device | |
| - | Up to 2 sets SD Card/SDIO | |
| - | Up to 2 sets 10/100 Ethernet MAC | |
| - | Up to 2 sets Camera Sensor Interface | |
| - | Up to 4 sets CAN Bus | |
| - | Up to 10 sets UART/RS485 | |
| • | Operating system | |
| - | Embedded Linux | |
| - | FreeRTOS | |
| - | Non-OS | |
| • | Operating temperature | |
| - | - 40 ~ 85 ℃ (Industry Grade) | |
