NAU83P20YGB

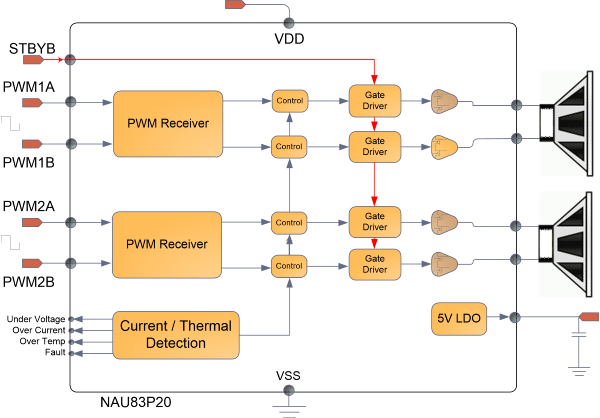

NAU83P20YGB is a Class-D audio power stage that features single supply, 20W, high efficiency, for driving Stereo bridge-tied speakers. Operating from a single VDD 8V-24V supply, the design includes under-voltage, over-current and over-temperature detection.
Target Applications:
| • | LCD TV | |
| • | TV sound bar | |
| • | Automotive Stereo System | |
| • | Portable Media Boombox | |
| • | Home entertainment system | |
Key Features:
| • | Audio Input | |
| - | 2 channel PWM Signal Input | |
| • | Audio Output | |
| - | Class D power 2 x 20W into 8Ohms (10% THD) | |
| - | Power efficiency Typ.@90% | |
| - | SNR Typ.@105dB | |
| - |
Supports multiple output configurations
|
|
| • | Advance Feature | |
| - | Over-Temperature Detection | |
| - | Under-Voltage Detection | |
| - | Over-Current Detection | |
| • | Operating Characteristics | |
| - | Voltage range: 4.5 V to 24 V | |
| - | Temperature range: -40°C to 85°C | |
| • | Package | |
| - | QFN-48 (7x7mm) | |
