How to use PinView in Keil/IAR IDE to debug? Issue Date：2021-07-13
Besides a standalone version, PinView also has a Plug-In version for Keil/IAR IDE in Debug Session.

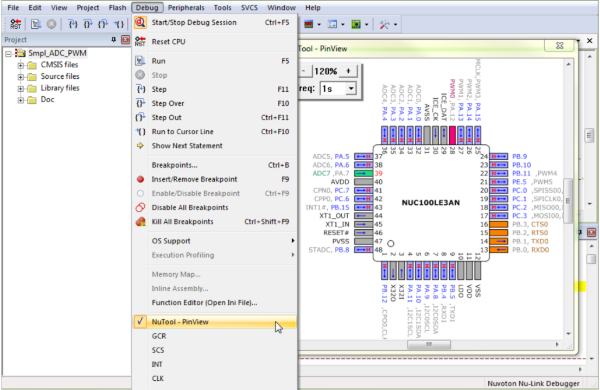

In Keil, users can enable Start Debug Session and click the Debug menu, then select the NuTool - PinView to start a debug session with PinView.

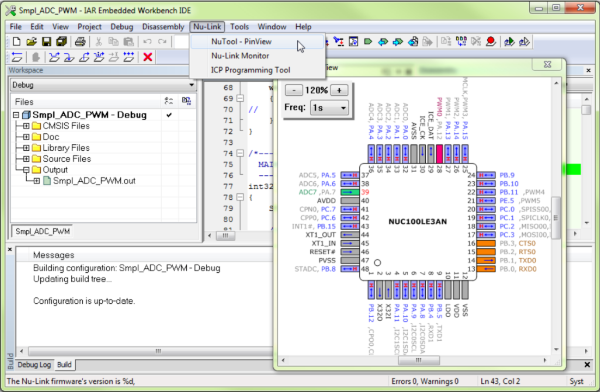

In IAR, users can enable Start Debug Session and click the Nu-Link menu, then select the NuTool - PinView to start a debug session with PinView.
Please refer to section 2.1 Running PinView in User Manual for more details.
Users can find the NuMicro PinView Tool User Manual by the path:
C:\Program Files (x86)\Nuvoton Tools\NuTool_PinView
Or download the user manual from the website:
https://www.nuvoton.com/resource-files/UM_PinView_Tool_EN_Rev0.12.pdf
Users can also find the video instruction here:
