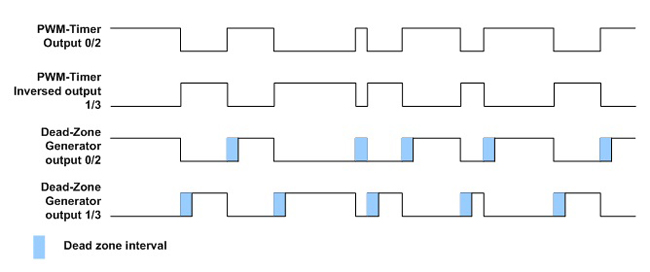

What are the Dead Zone generator of PWM and its features? Issue Date：2015-04-23
The Dead Zone generator of PWM is used for MOSFET protection, especially for the motor driver system to avoid both of the top and bottom MOSFET to be turned on simultaneously.
| Products: | Microcontrollers ,Arm Cortex-M0 MCUs ,M051 Base Series ,M0518 Series ,Mini51 Base Series ,Nano100/102 Base Series ,Nano110/112 LCD Series ,Nano120 USB Series ,Nano130 Advanced Series ,NUC029 Series ,NUC100/200 Advanced Series ,NUC120/122/123/220 USB Series ,NUC130/230 CAN Series ,NUC131/NUC1311 CAN Series ,NUC140/240 Connectivity Series ,Arm Cortex-M4 MCUs ,M451 Base Series ,M451M Series ,M452 USB Series ,M453 CAN Series ,NUC442/472 Series ,NUC505 Series |
|---|---|
| Applications: | |
| Function: | Peripherals,Timer and PWM,PWM Output |
