How to use EBI to connect to the LCD module of i80 interface? Issue Date：2018-11-22
The pins required for connecting the EBI to the LCD module of i80 interface are as follows:
EBI_AD [ 15 : 0 ]: EBI data bus
( 16-bit data width, EBI_AD [ 15 : 0 ] for EBI interface; EBI_AD [ 7 : 0 ] for EBI interface if 8-bit data width )
EBI_nCSx: Slave device enable signal, controlled by the master device ( EBI chip select output )
EBI_nRD: EBI read enable output
EBI_nWR: EBI write enable output

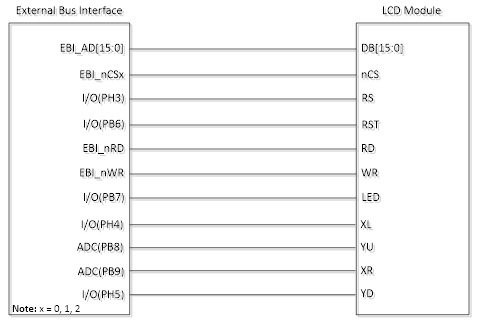

The LCD Module ( LCDT24963701 ) is illustrated as follows:
DB: Data Bus
nCS: CD chip select output
RS: Register selection, RS = 1: write data; RS = 0: write command
RST: LCD driver chip reset signal
RD: Read enable signal
WR: Write enable signal
LED: Backlight control pin
X+: Touch screen XL
X-: Touch screen XR
Y+: Touch screen YU
Y-: Touch screen YD
For the sample code, refer to the following website:
https://www.nuvoton.com/hq/resource-download.jsp?tp_GUID=EC0120180326104843
