The automotive data logger consists of NuMicro® NUC131 microcontroller and N9H30 microprocessor. NUC131 supports CAN Bus to log On-Board Diagnostics-II (OBD-II) data, which includes vehicle speed, engine RPM, engine coolant temperature, intake air temperature, MAF air flow rate and throttle position from engine control unit (ECU) simulator. Then NUC131 converts the OBD-II raw data and transmits the above information to N9H30. N9H30 shows the received information on 7” TFT-LCD human machine interface enhanced by emWin.

• Features


  -	Supports ISO 15765-4 CAN
  -	Extendable other standards
  	- SAE J1850 PWM/ VPW
  	- SAE J1939 CAN
  	- ISO 9141-2
  	- ISO 14230-4 KWP
  -	Supports HMI enhanced by emWin

• Specifications


  NUC131 (32-bit Arm® Cortex®-M0)
  -	AEC-Q100 qualified
  -	Supports CAN protocol version 2.0 part A/B and bit rate up to 1 Mbit/s
  -	Supports up to 6-set UART with LIN and RS485 function
  -	Supports 24-channel PWM outputs with a max clock frequency of 100 MHz
  -	Supports high noise immunity: ESD HBM 8 kV and EFT 4.4 kV
  -	Supports a wide operating voltage from 2.5V to 5.5V

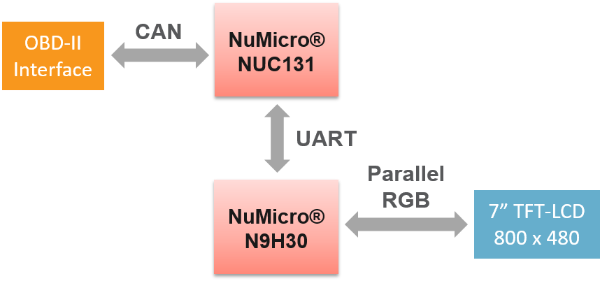

• System Block Diagram
